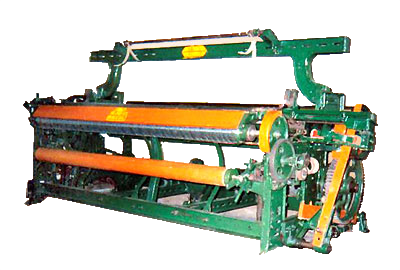

Underpick Loom 72"
Loom built on standard frame of graded heavy duty casting all breasing
members of casting with highly polished breast beam surface, with single
top rail.
Main bearing & bush for crank and tappet shaft are made in close
tolerance for longer life, Crank shaft forged out of 50M/M, Tested Steel,
Crank throw 3” machined in a close tolerance. Tappet shaft of
1 5/8” dia. Tested steel machined in close tolerance. ‘A’
section ‘V’ Groove pulley drive.
Crank & Tappet wheel are of graded casting with 4 dp. Machined
cut teeth.
Double set of tappet with smooth surface & 80” Dwell for
shed opening for longer time for better shuttle flight. Heald shaft
with boss supplied.
Pickless 7 wheel take up motion with all machined cut gears and penion
& ratchet wheel with slip catch system.
Sley made out of seasoned wood, all c.i. parts machined in close tolerance
& polished surface, sley to suit 16”x 1 13/16 x 1 3/8 x 90°
shuttle. Stop rod & duck bill hiters of graded casting.
Under picking system, laminated picking stick & side lever with
hardend picking bowl & chilled surface of nose for longer life,
shuttle, checking by buffer band with spring arrangement.
Side weft fork system to stop the loom on weft break.
Weigh & weigh lever arrangement let of motion for beam without
ream pipe.
Back rest of single pipe or two bar design with eccentric on crank
shaft.
NOTE : Loom Can be supplied with following at extra
cost.
- Double top rail of M.S.Channel.
- Loom on tapestry (Deeper) frame to accommodate upto 16 heald frame.
- Spring loaded let off motion.
- Oiling system for main rearing.
|
